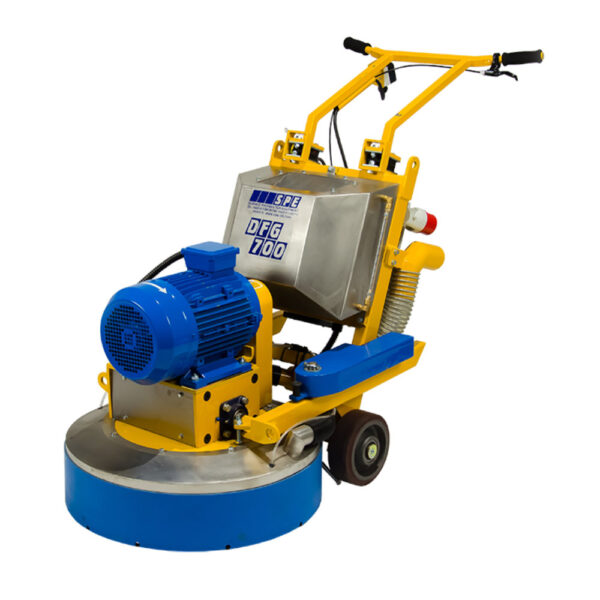

SPE DFG 700 HIGH PERFORMANCE ORBITAL GRINDING MACHINE 415V

DescriptionThe SPE DFG 700 HIGH-PERFORMANCE ORBITAL GRINDING MACHINE 415V is a heavy-duty triple head planetary floor grinder. It has been developed to meet the increasing demand for this principle and grinding materials to a finished product.The DFG700 has all the benefits of the popular single and twin-head DFG machine but also allows the operator to grind large areas to a fine finish eliminating swirl marks that can be left by conventional grinding methods.The Main drive plate is driven through a heavy gearbox and each grinding tool is then turned independently at an increased RPM. The DFG700 has a variable speed control devised to suit various applications.Environmental considerations are fully controlled with an adjustable dust extraction skirt for dry use and a facility for using water when wet grinding.A major advantage of the DFG700 is the option of a 3-phase electric motor.SPE DFG 700 Features:700mm (27.6″) working width triple head planetary grinder with single or twin speed designVery high production rates on large areasFurthermore, the DFG700 features a pivotal weight and quick-release drive plate systemAlso packing a heavy-duty gearbox driveAs well as grinding heads supported by a multi-directional flexible couplingVariable grinding speedRobust constructionFeaturing an Anti-vibration handlebar mountQuick-release drive plate systemPivotal weightsUse with conventional DFG Diamond PlatesTypical ApplicationsUse for accurate grinding of large concrete areasRe-profiling of old concrete floorsRemoval of old coating and contaminatesGrinding and finishing of resin-based and tiled terrazzoProvides ideal preparation for thin-film coatingConcrete polishingDFG 700-1 Specifications:Voltage:415Power Output (kw):14.7Number of Heads:3Individual Head Speed (rpm):180 – 400Motor Speed (rpm):2800Dimensions (LxWxH) (mm):1570 x 680 x 1090Weight (kg):292 Should you have any questions regarding the DFG 700, by all means, contact our fully trained staff for advice and assistance.
