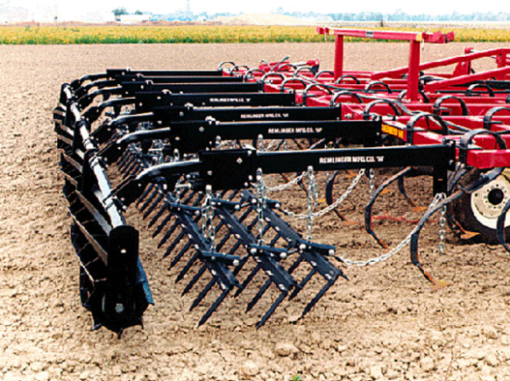

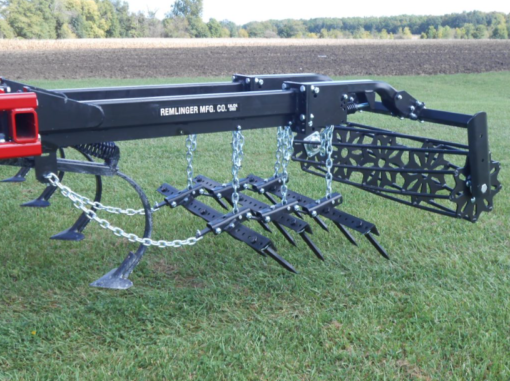

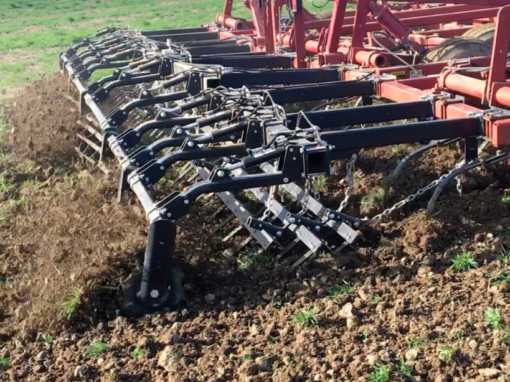

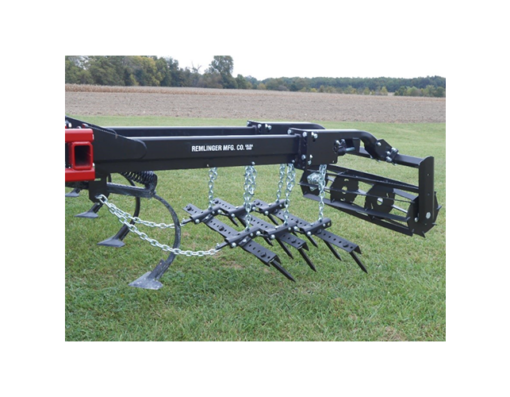

Remlinger 3 Bar Roller Flex Harrow *Please Contact Us For Pricing Remlinger Mounted Harrows. We Will Need To Know The Following – Implement Make Model Cut Width Base Width Frame Size *PRICE DOES NOT INCLUDE SETUP OR SHIPPING – PRICED FOB FACTORY Overview Breakdowns Video Remlinger 3 Bar Roller Flex Harrows Remlinger’s 3 Bar Roller Flex Harrow mounts on field cultivators and other staight frame secondary tillage tools. The 3 bar angle iron harrow breaks clods and levels the soil. The roller penetrates up to 2″ deep, mixing and firming the soil. The unique design allows each tool to perform independently of the other. Key Benefits Available in 3 bar mounted designs 4 bar roller flex on new style heavy frame field cultivators only 3 bar double roller on new style heavy frame field cultivators only 11″ spike tooth 2-1/2″ x 2-1/2″ x 1/4″ angle iron bars Angle iron bars suspended by chains Spike teeth on each bar are on 9″ spacing Each bar is on 10″ spacing Single 12″ roller with spring tension mounting arms 8 high carbon spiral blades No center shaft, thus allowing for better soil and residue flow Tillxtreme Bearing – Greaseless Roller can be set in Passive Mode – maintains maximum soil firming Roller can be set in Aggressive Mode – maintains maximum soil shattering Break clods and level soil in one pass Excellent performance in conservation tillage Standard mounting arms fit 2-1/2″, 3″ and 4″ tall frames without adapters Mounts on most types of straight frame tillage tools Harrow sizes range from 3′ 6″ up to 6′ 6″ in 9″ increments Arm Breakdown Linkage Breakdown Single Roller Arm Breakdown Spike Breakdown Roller Breakdown
